Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit | 88-98 C1500 - Rear Kit

Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit | 88-98 C1500 - Rear Kit

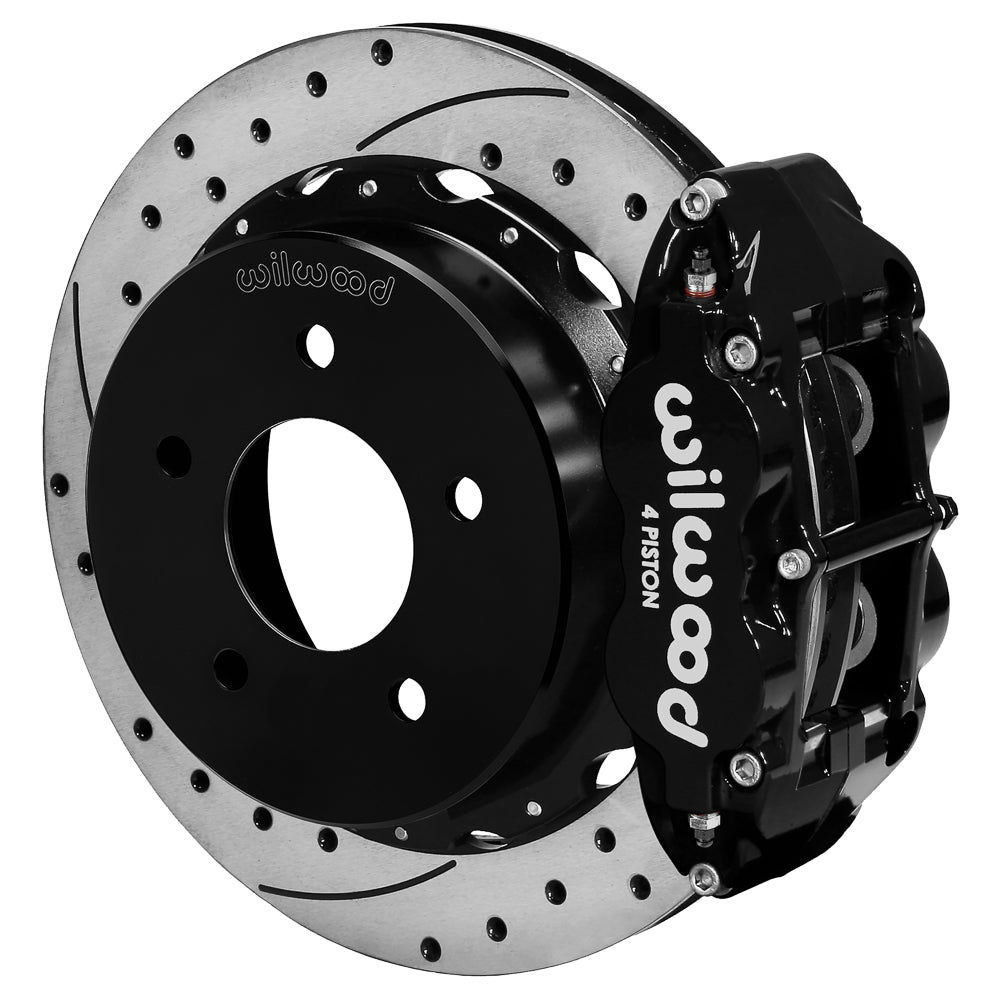

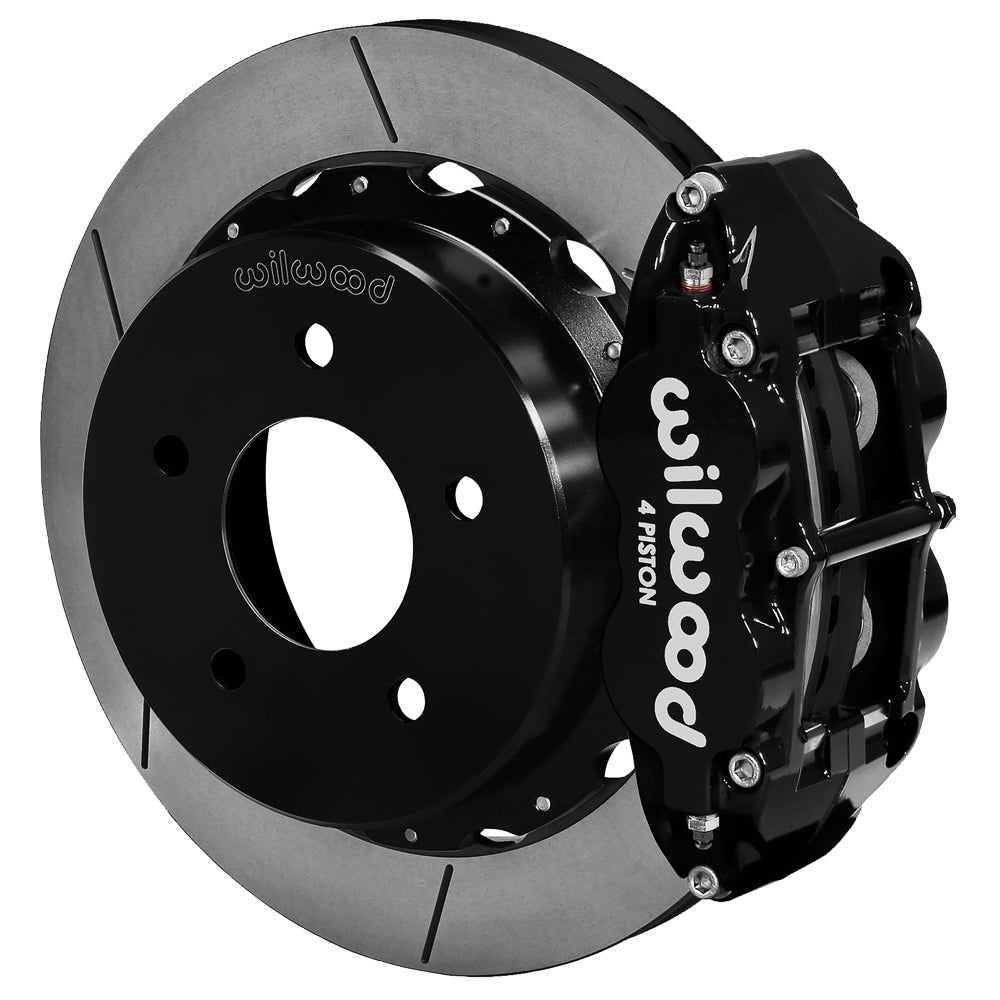

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

Kit Summary

• Rear end axle 88-98 C1500
• Axle offset 3.25"
• 4 Piston Calipers
• 14" Rotor Diameter
• Requires 18"+ Wheels

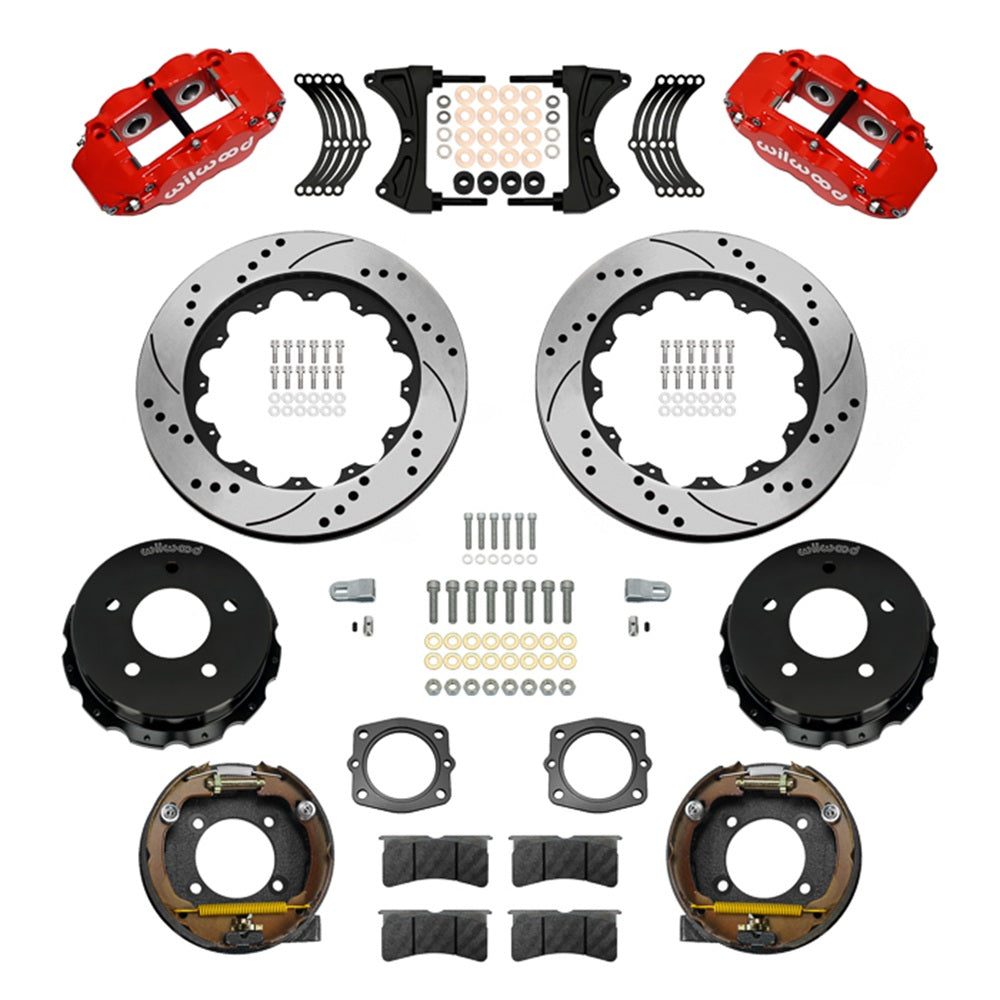

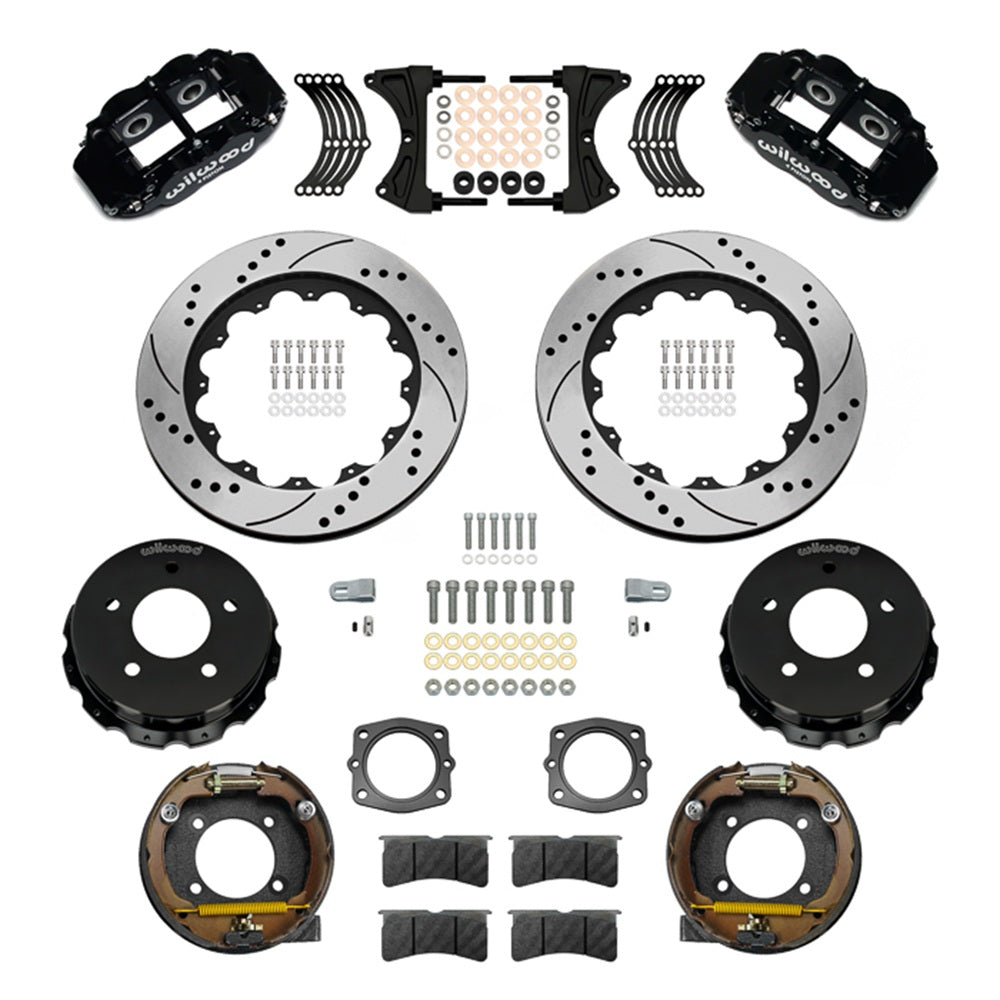

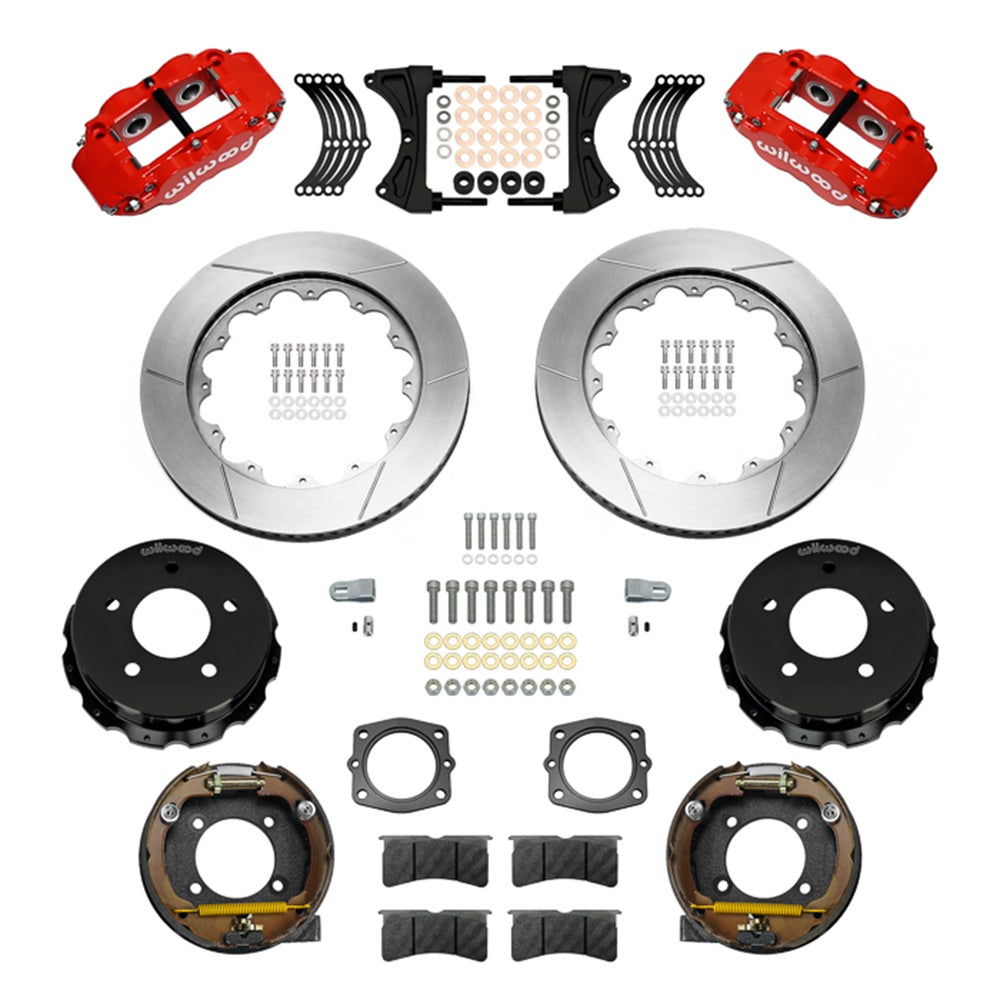

• Black or Red Caliper Options

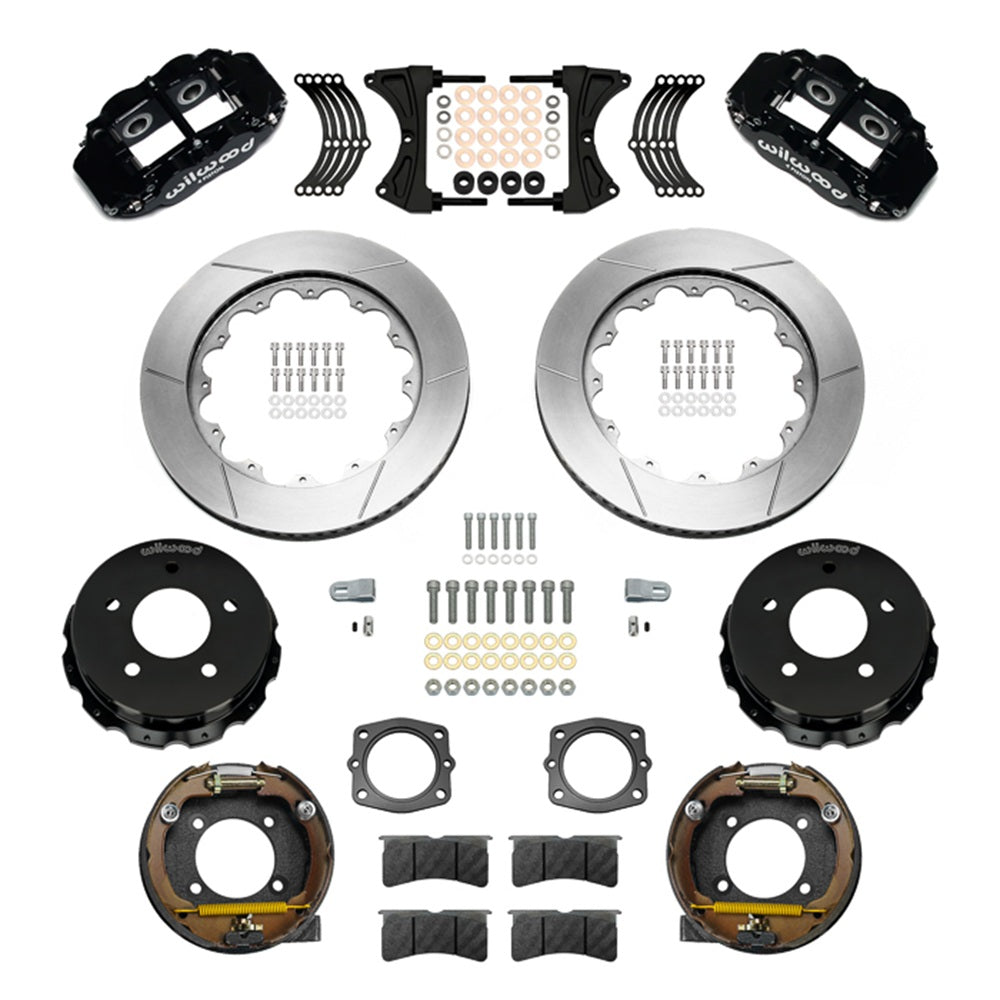

• Slotted or Drilled & Slotted Rotor Options

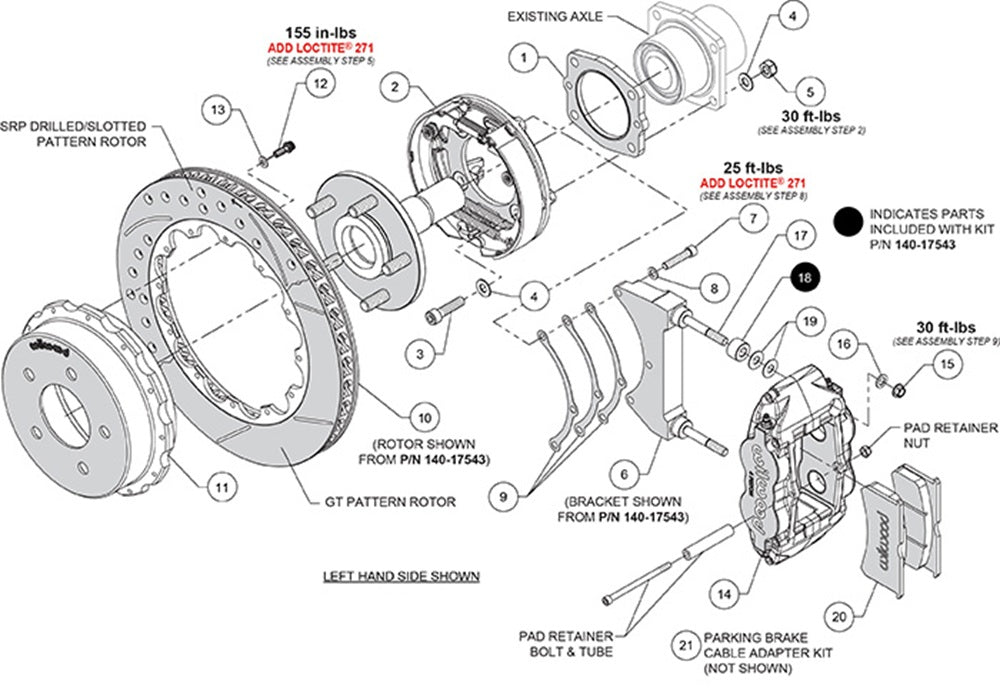

ASSEMBLY INSTRUCTIONS

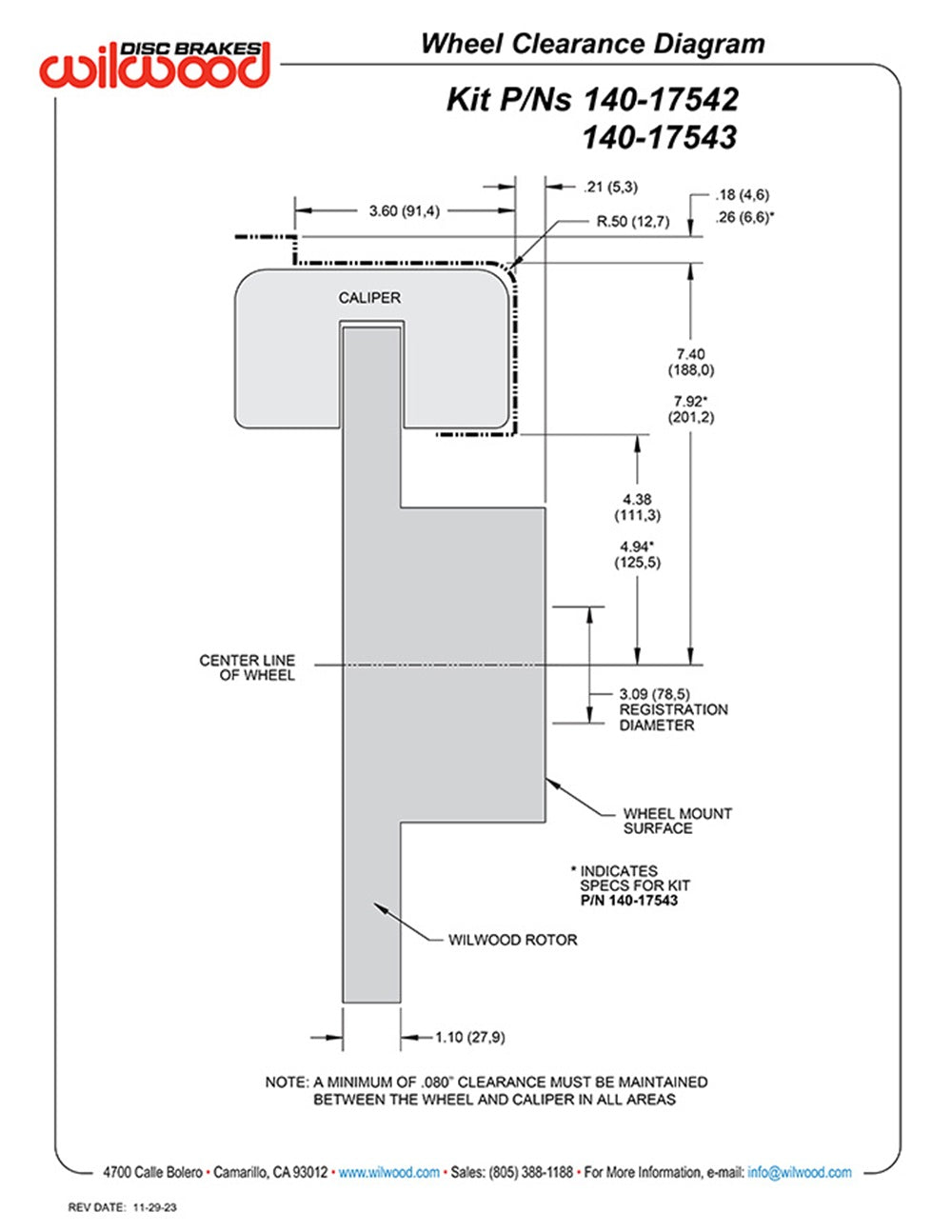

NOTE: This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram in assembly instructions to check to see if it will fit your specific wheel.
