Wilwood Forged Narrow Superlite 4R Big Brake Rear Electronic Parking Brake Kit | 88-98 C1500 - Rear Kit

SKU: 140-18045

Regular price $3,709.99
Save $-3,709.99
/
Shipping calculated at checkout.

Only 0 items in stock!

Wilwood Forged Narrow Superlite 4R Big Brake Rear Electronic Parking Brake Kit |  88-98 C1500 - Rear Kit

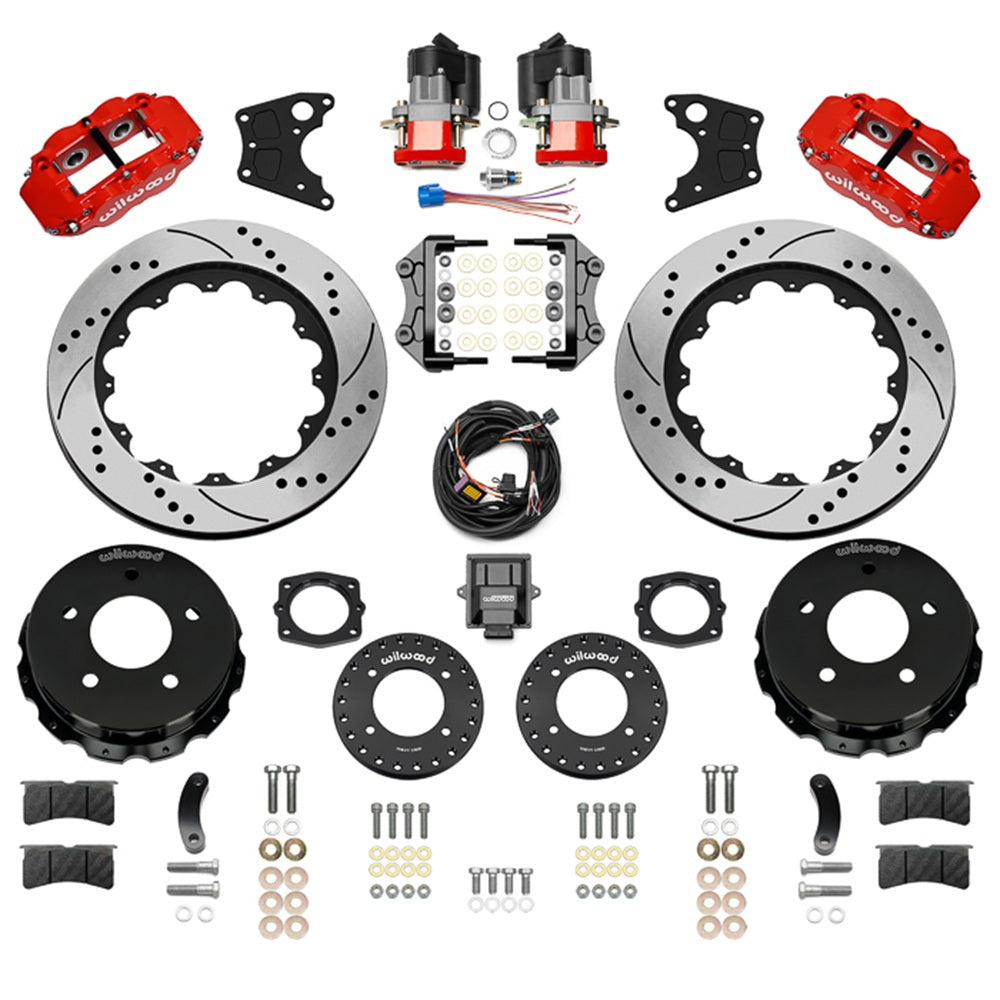

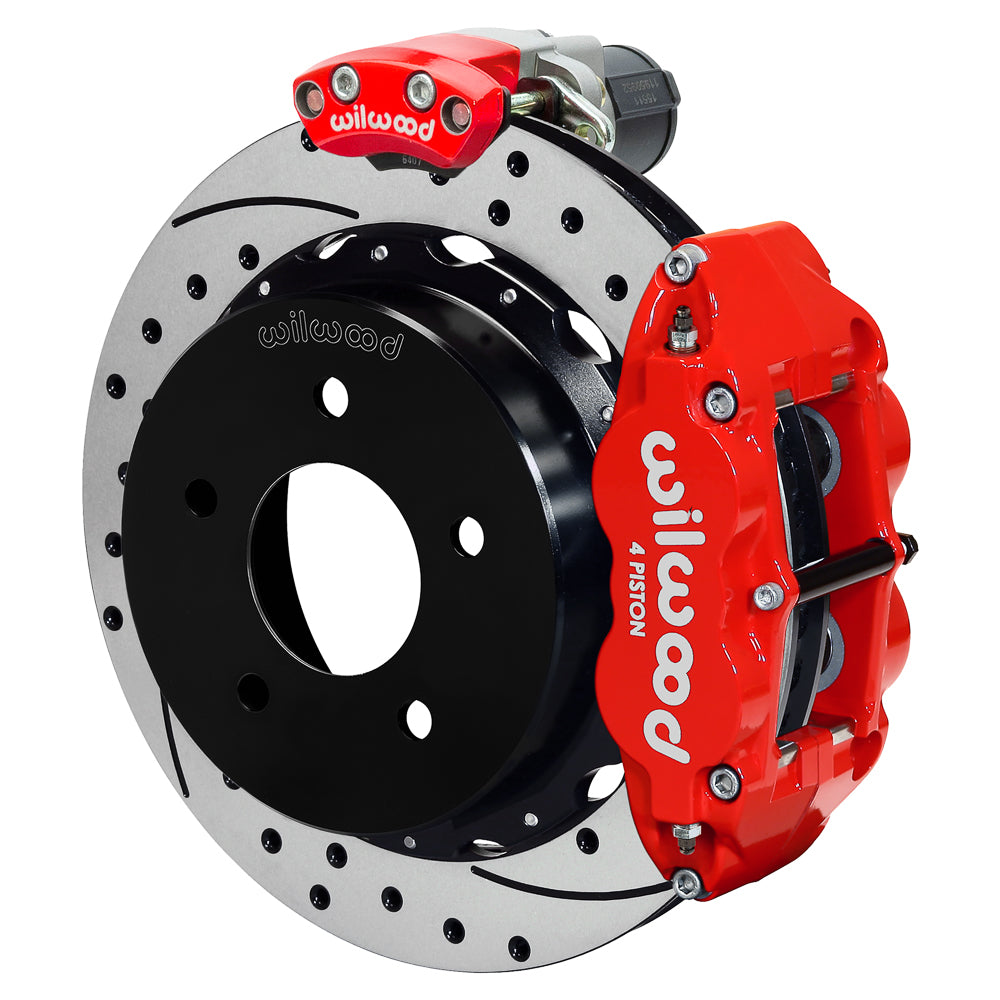

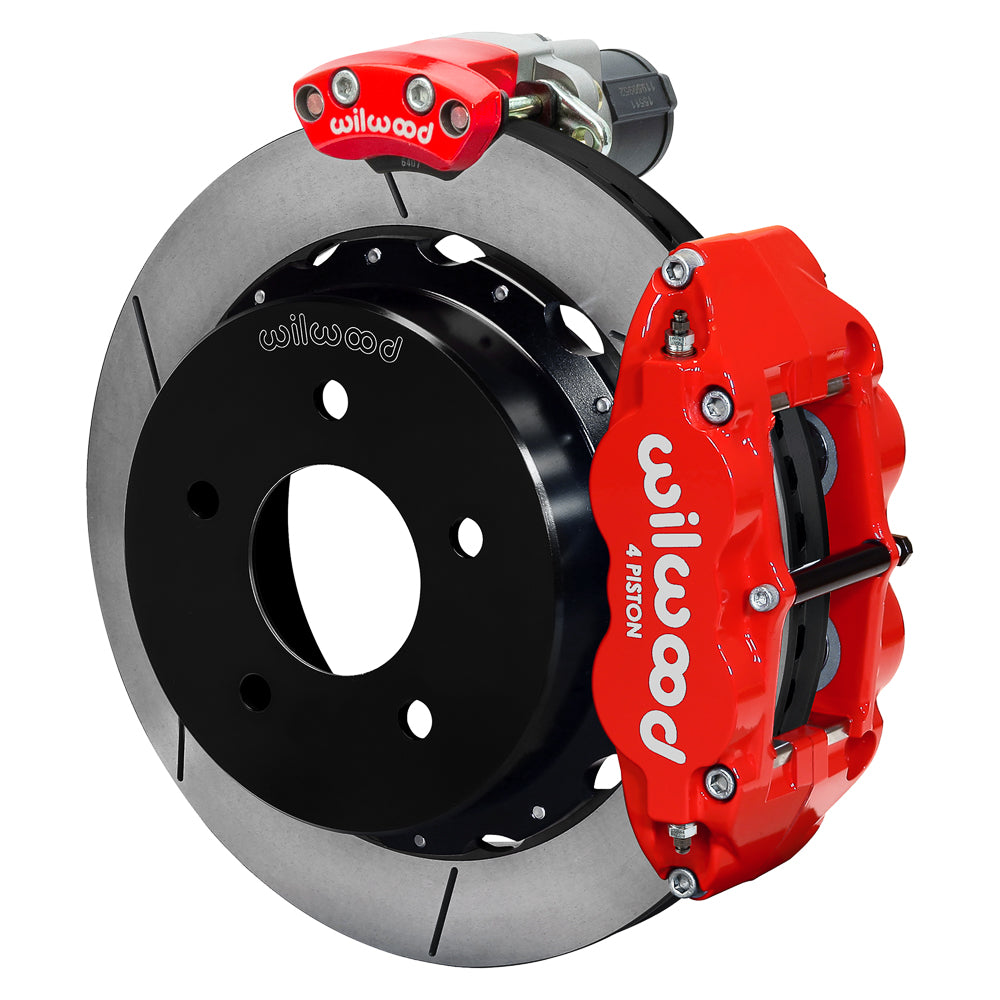

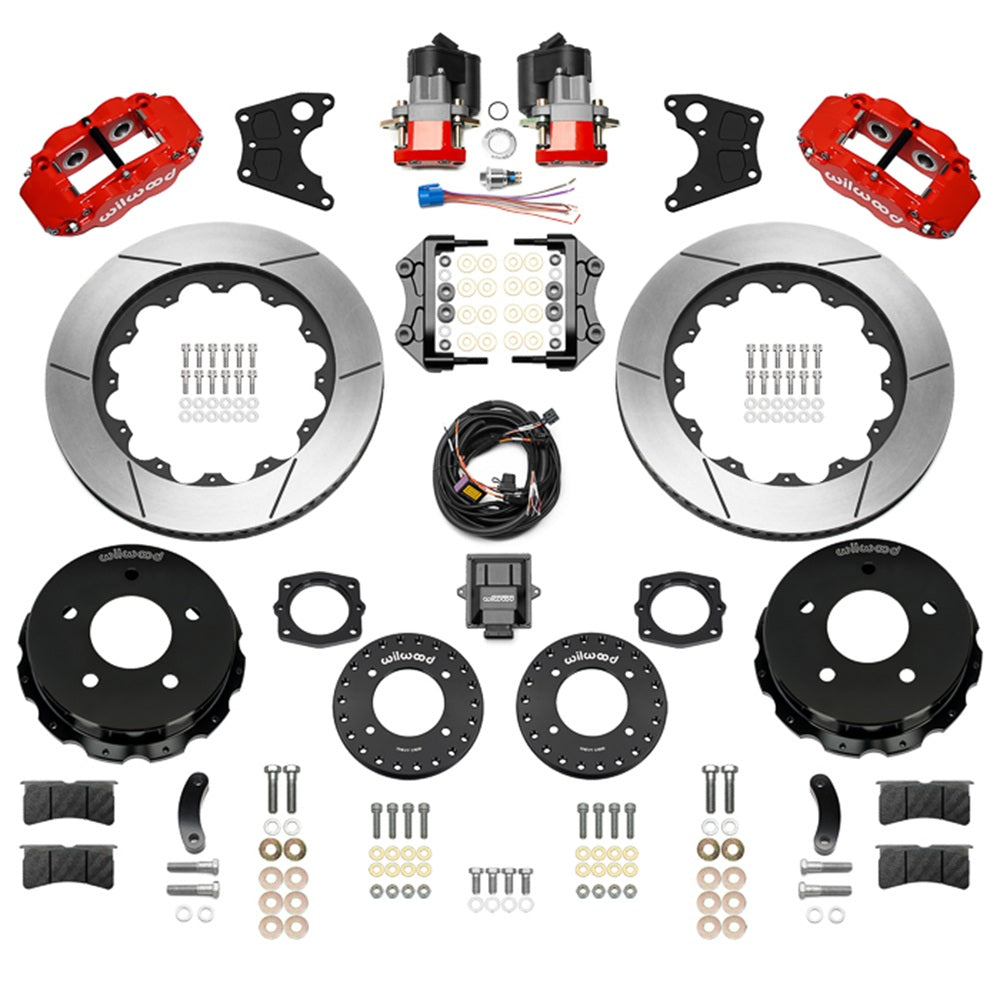

Forged Narrow Superlite 4R Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Kit Summary

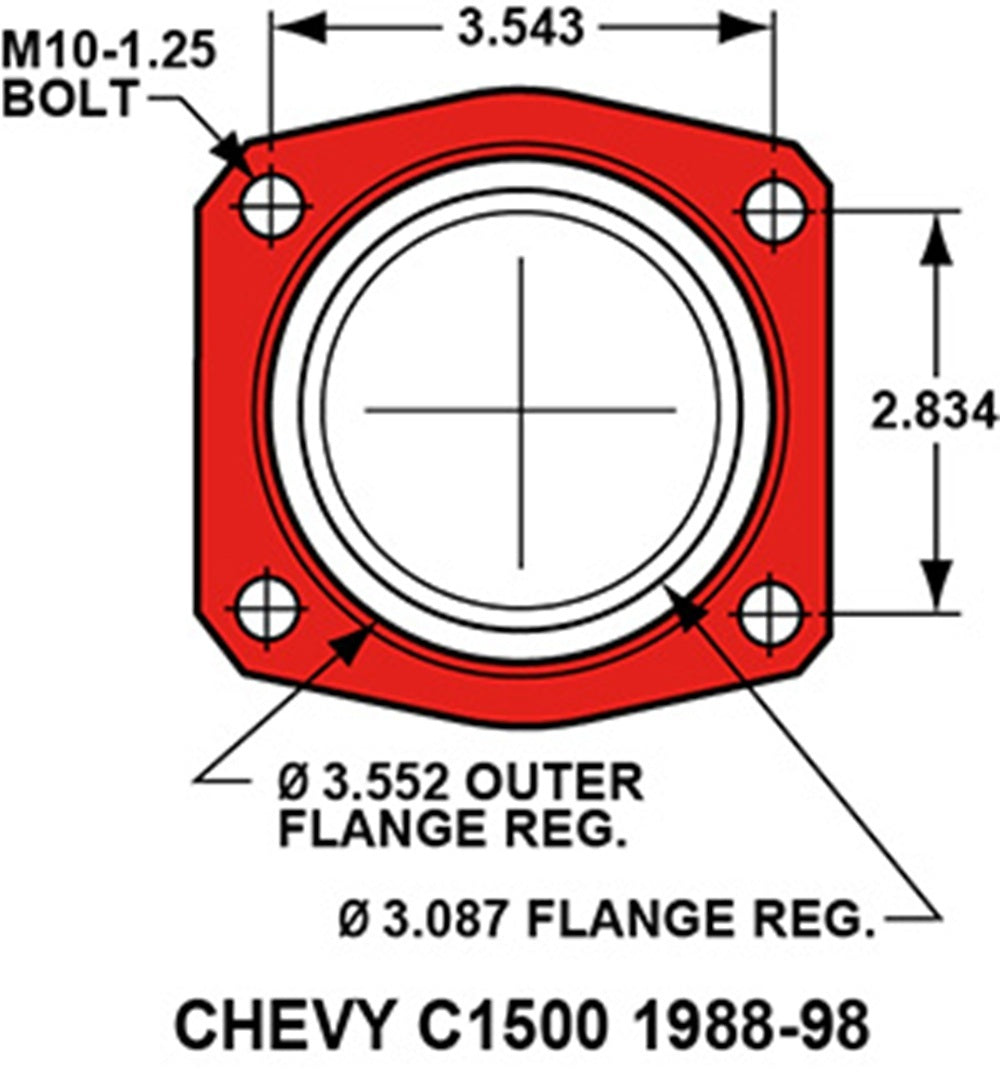

  • Rear end axle 88-98 C1500
  • Axle offset 3.25"
  • 4 Piston Calipers
  • 14" Rotor Diameter
  • Requires 18"+ Wheels

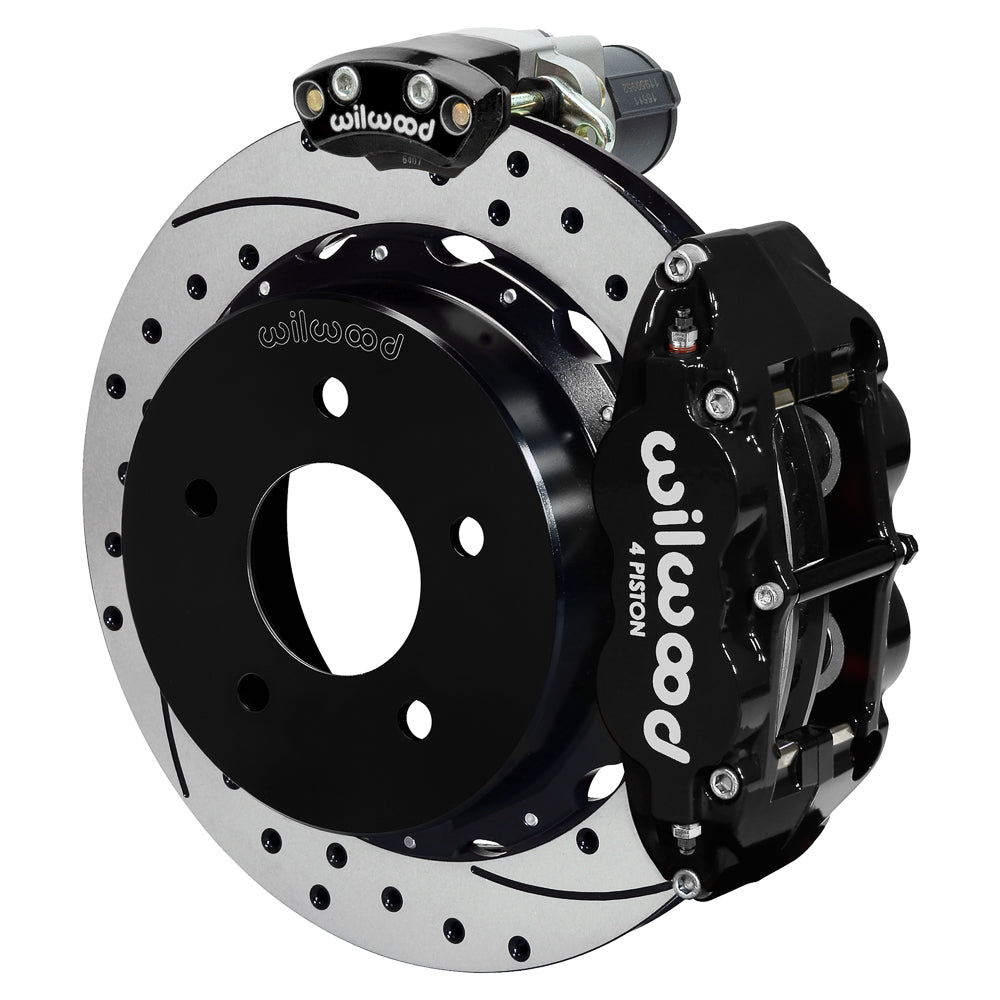

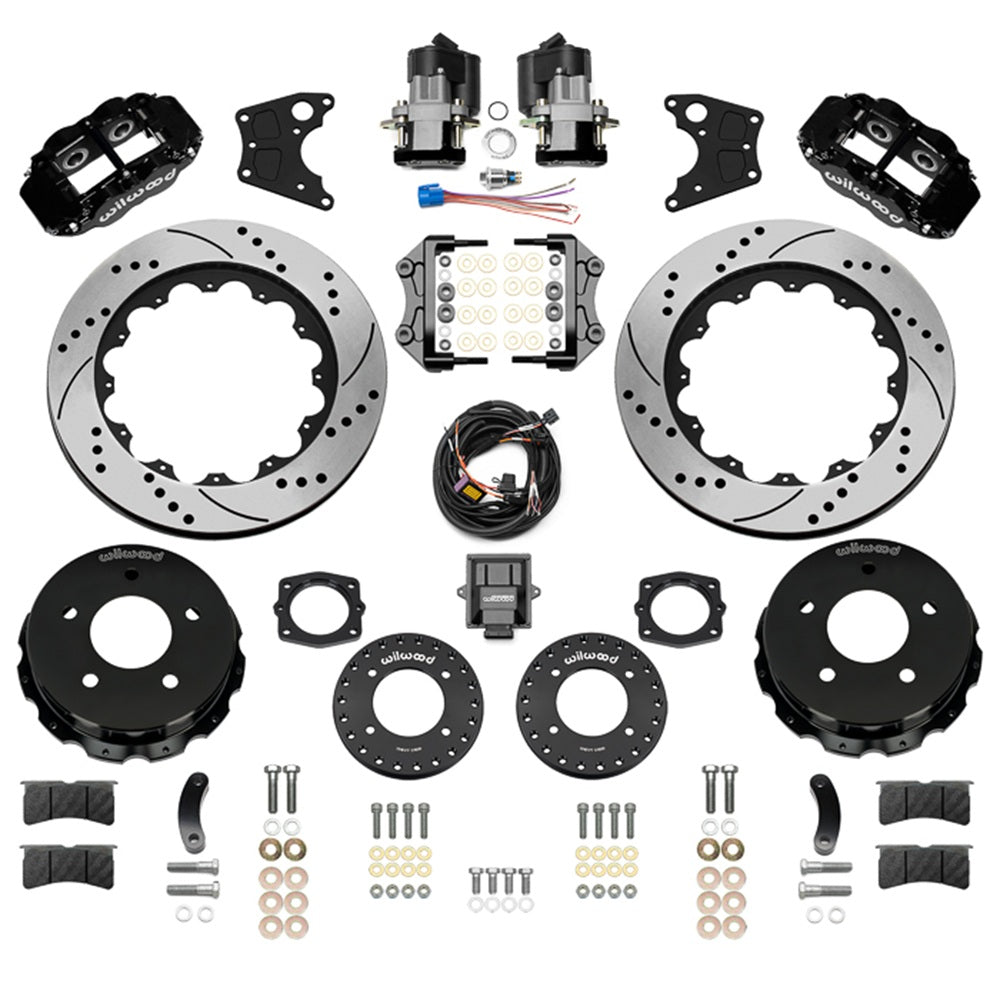

  • Black or Red Caliper Options
  • Slotted or Drilled & Slotted Rotor Options

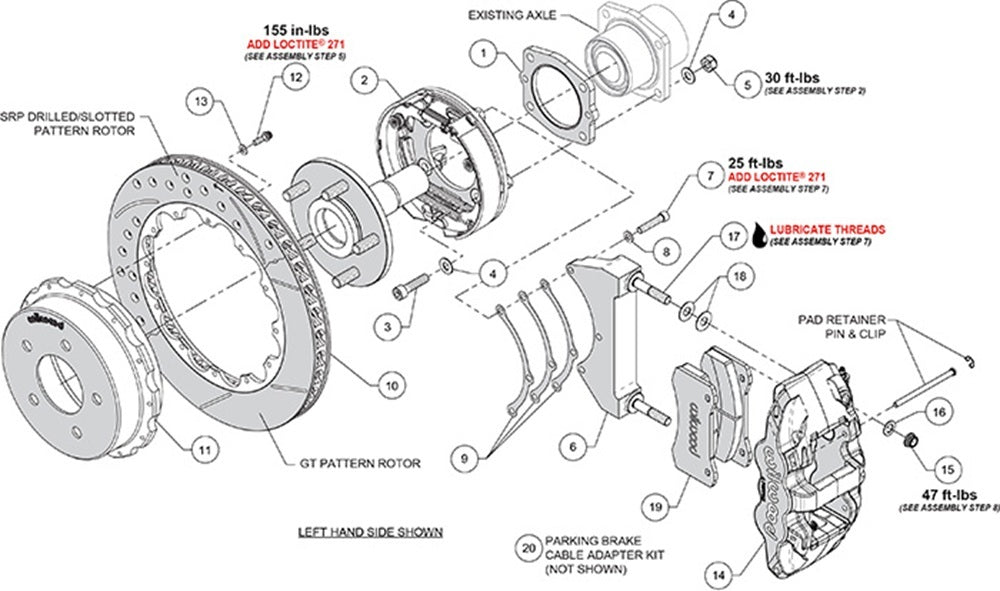

ASSEMBLY INSTRUCTIONS Part 1

NOTE: This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram in assembly instructions to check to see if it will fit your specific wheel.
